Product Description
H series power amplifier adopts efficient and stable Class-H circuit and 2.8-inch true color screen. Through efficient signal conversion function, harmonic distortion, inter-modulation distortion and transient inter-modulation distortion are greatly reduced, so that the sound quality is perfectly amplified. Integrated modular tuning, solid and compact structure and exquisite manufacturing process. It can perform stably and excellently in small conference rooms, KTV or multi-function halls.
Features

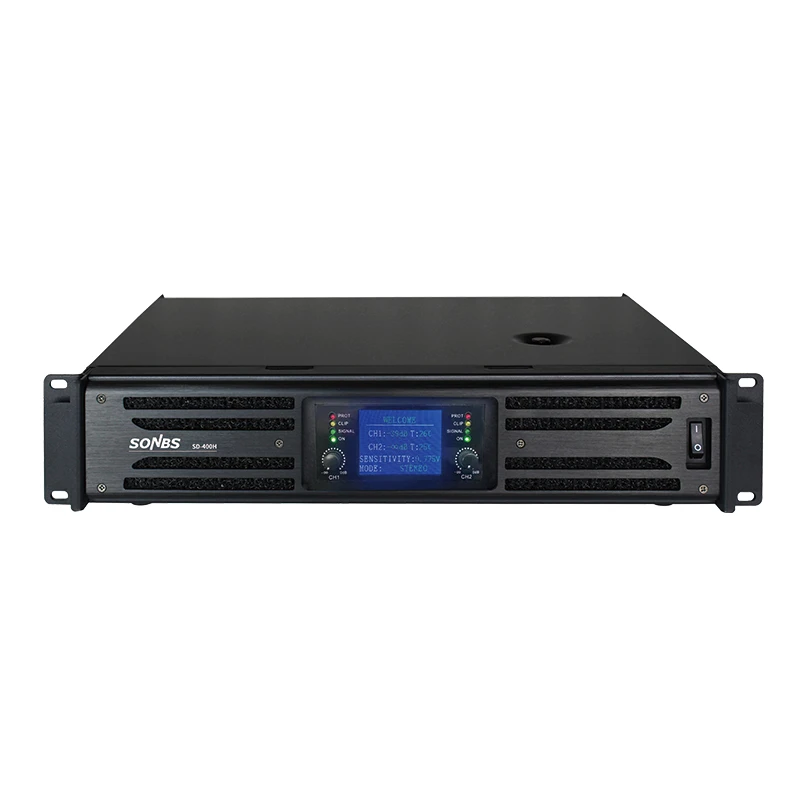

Functions of 2.8-inch true color screen: display of internal temperature, display of left and right channel values, display of working status, display of input sensitivity, and display of protection reminder shutdown.
1. Small size, low weight, high efficiency, high sound quality, full and magnetic sound.
2. With unique protection circuit design, protection functions: DC, overheating, overload and amplitude limiting, over voltage and under voltage can effectively ensure the long-term use of the equipment.

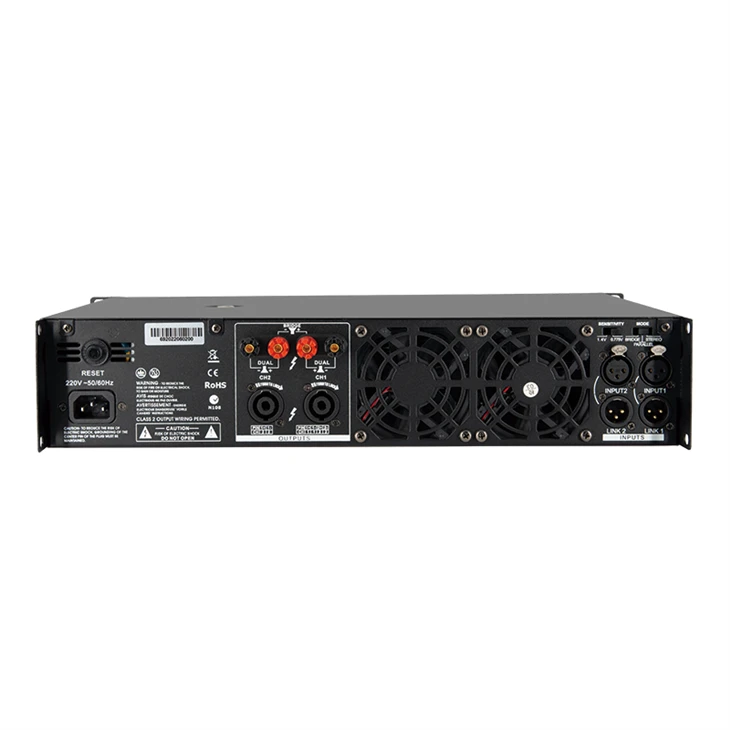

3. The rear panel toggle switch is used to select stereo mode, bridge mode and parallel mode.
Technical parameters
|
Model |
SD-400H |
SD-600H |
SD-800H |
SD-1000H |
SD-1200H |
|
Stereo power 8 Ω |
2×400W |
2×600W |
2×800W |
2×1000W |
2×1200W |
|
4Ω |
2×700W |
2×1000W |
2×1400W |
2×1800W |
2×2000W |
|
Bridged Mono 8Ω |
1100W |
1800W |
2300W |
2800W |
3200W |
|
Signal to noise ratio |
100db |
100db |
100db |
100db |
100db |
|
Conversion rate |
10V/us |
10V/us |
10V/us |
10V/us |
10V/us |
|
Damping coefficient |
200:1 |
200:1 |
200:1 |
200:1 |
200:1 |
|
Frequency response |
20-20000Hz(±0.3dB) |
||||
|
Total harmonic distortion |
<0.5%,1KHz |
||||
|
Intermodulation distortion |
﹤0.35%8Ω,1KHz1W |
||||
|
Input sensitivity |
0.775V/1.4V |
||||
|
Weight |
13.3kg |
14.3kg |
14.8kg |
17.6kg |
18.8kg |
|
Specification |
W × D × H: 484 × 360 × 88mm |
||||
