SC-3201M System

Your Professional SC-3201M System Supplier


Guangzhou SONBS Electronic Technology Co., Ltd was established in 2006, located in Panyu district of Guangzhou. SONBS is the trustworthy integrated supplier of audiovisual systems, integrating R&D, production, sales and service together in China for more than 19 years.





Why Choose Us

Professional Team

We have 50 R&D engineers, 100 pre-sales and after-sales technicians, 250 sales and 200 assembling workers, all totally about about 600 employees.

Provide Technical Training

Our professional engineer team can offer technical training and guide the customer to install equipment, for big project, we can send engineer on site to guide the installation.

Advanced Equipment

Yamaha YV100Xe SMT Mounter, Hitachi GXH-3 SMT Mounter, Optical Inspection Instrument, Printer, Programmable Thermostats, Ground Tester,High Voltage Tester, Digital Oscilloscope, Audio Signal Generator, Voltmeter, Millivoltmeter, Voltage regulator, Capacitance Leakage Tester,Transistor DC Tester, Frequency Sweeper, Vernier calipers etc.

Certification

All product lines have passed the mandatory Product Certification (3C Certification) and have passed ISO9001 Quality Certification, ISO14001 Environmental certification, and ISO18001 Occupational Health certification.The plant has passed the SGS and Alibaba onsite certification.





SC-3201M System Specifications



Working power supply

AC110V/220V

Static power consumption

10W

Max. power consumption

350W

Output power

≤110W/24V per channel

Audio output impedance

100Ω

Mode

Unbalanced, Balanced

Sound Effects

No ANC, AFC, AGC

Audio input impedance

100KΩ

Mode

Unbalanced, Balanced

Frequency response

60Hz - 18KHz

Signal to Noise Ratio (S/N)

> 80dB

Harmonic Distortion

< 0.5%

Over carrier distortion

<1%

Crosstalk attenuation (1kHz)

>50dB

Weight about

6.5kg

Dimensions (mm)

483L x 275W x88.1H

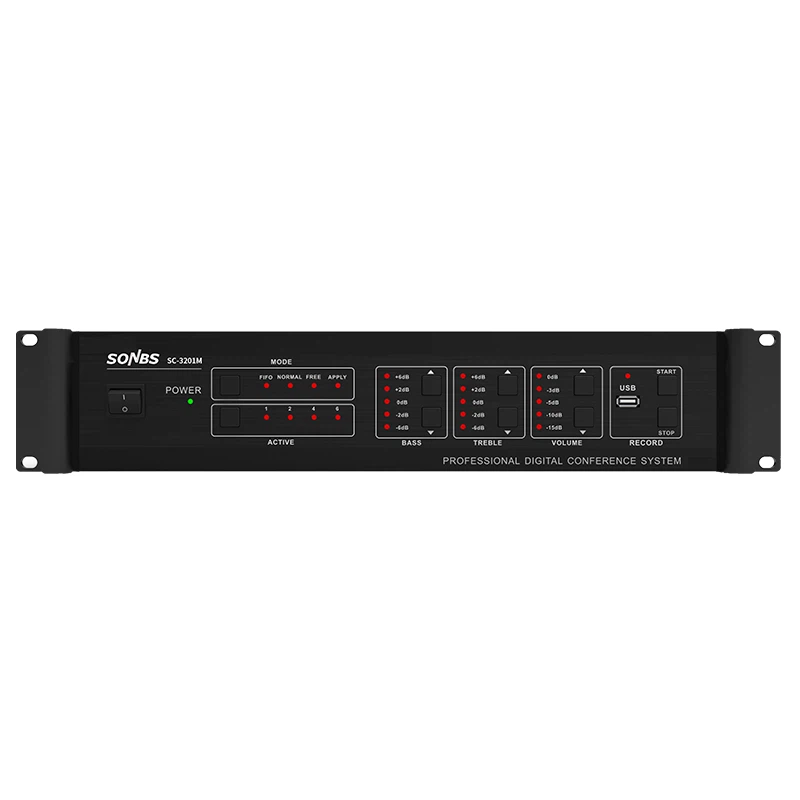

productcate-800-800



Features

The conference control host can connect up to 128 conference units, and through the conference expansion host, a conference system can connect up to 5000 conference units.



Up to 36 translation units can be connected to realize simultaneous interpretation in 11+1 languages, with 12-channel interpreter audio output.



The front panel is equipped with a USB field recording interface, with buttons to start recording and stop recording. After connecting to the U disk, the recording function will automatically generate MP3 format files and save them. The maximum support for U disk is 16G.



Use special 8-pin aviation plug connection, with interpreter machine interface, extension host interface, conference unit interface.



Use special 8-pin aviation plug connection, with interpreter machine interface, extended host interface, and conference unit interface.



With 5 groups of original sound channel output and input, the rear panel of the host is equipped with 1 group of horn head and 6.35mm interface balanced output, 1 group of RCA mixed output interface, and 1 group of independent microphone audio RCA output interface, RCA external audio Input interface 1 group).



Technical Notes


A CAT5 cable is used to connect the conference microphone system units together. The cable must be shielded to prevent interference.

Maximum cable length between units is 260 ft. and 1,300 feet for any branch connection.

System contains multiple input and output connectors for connecting to additional AV equipment or teleconferencing systems.

Save your recordings in a variety of quality levels and formats: either .wav or mp3 and 64, 128, or 192 kbps.



Our Certificates



productcate-1-1



FAQ



Q: Are you Manufacturer or Trading company?

A: Yes, we are a factory. We have more than 12 years experience in researching and manufacturing.

Q: Do you have any qualification certificate?

A:Yes, we have theCCC.CE and ROHS certificates.

Q: Is sample available?

A: Yes, sample order is welcome.Average delivery for sample is around 7-10days.

Q: Can I use my own Logo?

A: Yes, you can use your own Logo. We are rich experienced in OED/ODM orders.

Q: Could you produce the products according to our request?

A: Of course, we have experienced eigineers to design the expected items as you want, we have much experience at ODM.

Q: What is your payment terms?

A: T/T payment or Visa Card via alibaba.com 30% deposit payment before production, and 70% balance payment before shipment.

Q: What would the delivery time be?

A: Regularly 15-30 days since deposit received depends on different quantities.

Q: Shipping documents to be provided.

A: Invoice, packing list, Bill of lading for all shipments. CO, CQ, FORM E available when requested.

Q: Warranty.

A: 24 months after shipment.

As one of the most professional sc-3201m system manufacturers in China, we're featured by quality products and good service. Please rest assured to buy customized sc-3201m system at competitive price from our factory.
