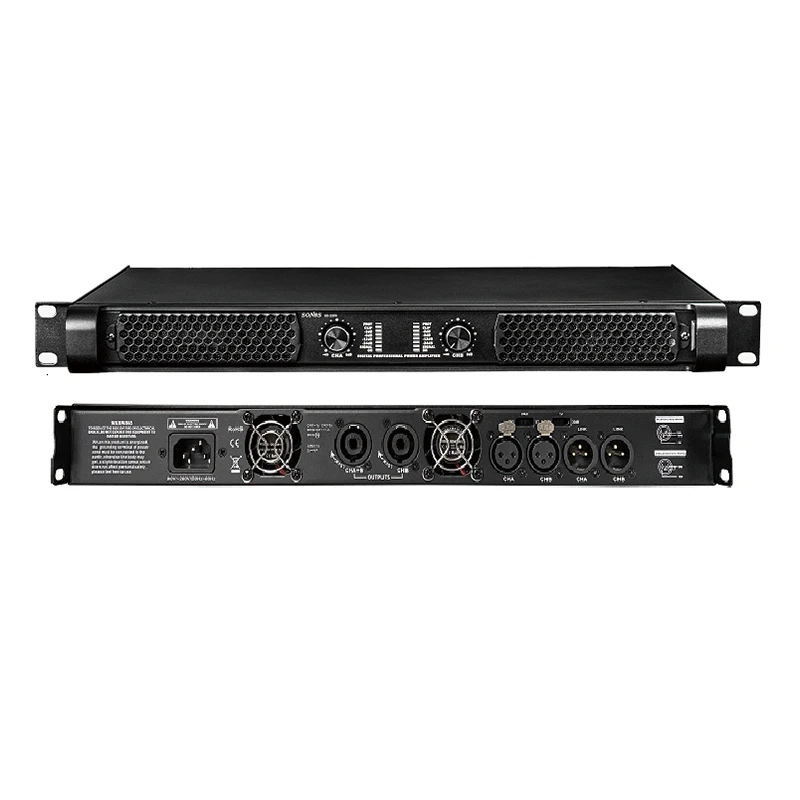

This Series power amplifier is a new milestone in amplifier development. Advanced Class D PCB module and SMPS power supply module are used to obtain high efficiency and stability . It has very high power density, which makes the amplifier to reach powerful output in a very small shell space.
Features
1. Both 2 channel and 4 channel models are available.
2. PFC built - in to get universal operating voltage 90-265VAC for the amplifier . No worry about unstable power voltage in operation.
3. Compact structure in only 1U height and light weight , easy to move and install.
4. Fixed switch frequency Class D РСВ module.
5. Soft resonant Switching power supply LLC module.
6. High efficiency loud speaker EMF absorption system.
7. Unique peak clipping limiter and ripple Elimination.
8. LOW electricity consumption.
9. Nice cooling system with quality fans to make wind flow front to the rear.
10. Accurate volume control, switch on/of, signal, clip and protection LED light in front panel.
11. Multiple automatic protection against direct current, over heat, over load, on/of switching, RF, and amplitude limit.
12. XLR balance input and professional SPEAKON output connectors.
13.Stereo, bridge and mono mode selection.
14.Good for applications that need strong power output.
Specification
|
Model |
SD-2350 |
SD-2500 |
SD-2650 |
SD-2800 |
|
Channel number |
2 channel |
2 channel |
2 channel |
2 channel |
|
8Ω stereo output |
2X350W |
2X500W |
2X650W |
2x800W |
|
4Ω stereo output |
2X580W |
2X800W |
2X1050W |
2x1300W |
|
2Ω stereo output |
2X1100W |
2X1100W |
2X1250W |
2x1500W |
|
8Ω bridge power |
1160W |
1600W |
2100W |
2600W |
|
4Ω bridge power |
1600W |
2200W |
2800W |
3300W |
|
Circuit Category |
Class D |
Class D |
Class D |
Class D |
|
Voltage Gain |
40.8/38.6/32 |
40.8/38.6/32 |
41.2/39/32 |
42.7/40.5/32 |
|
Total Harmonic Distortion |
≤0.035% (@ 8Ω,1kHz,1/8 rated power) |
|||
|
Intermodulation Distortion IMD |
≤0.15% (@ 8Ω,1kHz,1/8 rated power) |
|||
|
SNR |
>106dB A |
|||
|
Crosstalk |
>40dB |
|||
|
Frequency Range |
10Hz to 20k Hz,+/-1dB |
|||
|
Input Resistance |
Balanced 20K/ Unbalanced 10K |
|||
|
Damping Coefficient |
≥600 |
|||
|
Conversion Rate |
≥20v/uS |
|||
|
Input Sensitivity |
0.775V,0dB |
|||
|
Protection Functions |
Amplitude limit, and protections againts short circuit, over-load, overheat, direct current, radio-interference, on/off switching and muting. |
|||
|
Control Knobs |
Power On/Off switch, VOLUME control in front panel, Stereo/Bridge/Mono switch on back panel. |
|||
|
LED indicators |
CLIP/-10dB/SINGAL/MONO/BRIDGE/STATUS indicators in front panel |
|||
|
Power Delay |
4 seconds |
|||
|
Input Interface |
XLR input socket |
|||
|
Output Interface |
SPEAKON connector |
|||
|
Dimension(W*H*D)mm |
483*44*230 |
|||
|
Net Weight |
5.0kg |
5.5kg |
5.8kg |
6.2kg |
