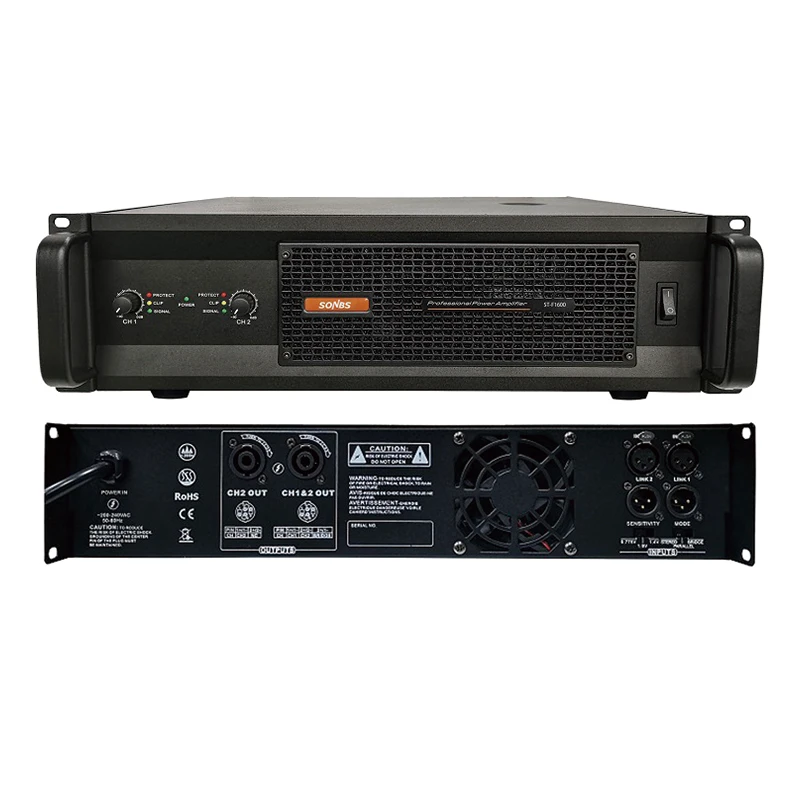

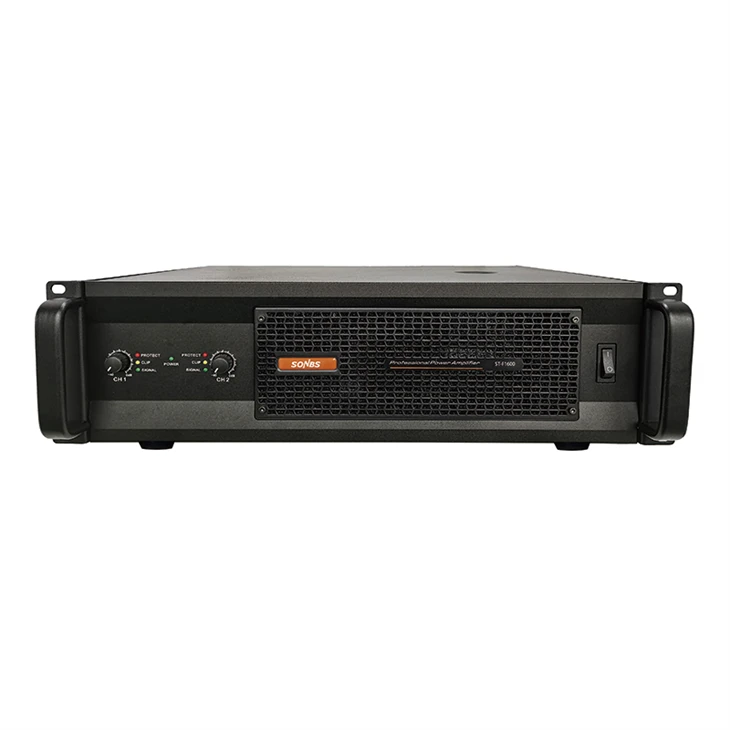

Features
1. A new type of digital-analog combined power amplifier in 3U height 132 mm.
2. 2 channel models are available .
3. Transparent sound, sufficient energy, delicate medium and high frequency , strong
and elastic low frequency.
4. Carefully-selected high quality components. 100% quality inspection from material to finished product, which make high stability and long last working life of the amplifiers.
5. High stability of working performance and long - lasting working life .
6. Full automatic protection against short circuit, over-load, over-heat, mismatch, switch on/off and radio frequency interference.
7. Compact structure,it is a good choice to use them in wedding, KTV, bar, small roadshow, conference, etc.
Specification
|
Model No. |
ST-F1600 |
ST-F1800 |
|
Channel number |
2 channels |
2 channels |
|
Circuit category |
digital-analog combined |
digital-analog combined |
|
Height |
3U(132mm) |
3U(132mm) |
|
Output power at 4 Ohm |
2850W*2 |
3200W*2 |
|
Output power at 8 Ohm |
1600W*2 |
1800W*2 |
|
Bridge output power at 8 Ohm |
4000W |
4500W |
|
Max. Output Voltage and Current |
103V, 25A |
105V, 30A |
|
Voltage Gain |
34dB |
|
|
Input Sensitivity |
0db(0.775V rms) 1.0V/26dB |
|
|
Frequency response |
20Hz to 20k Hz(+/-0.5dB),1W 8 Ohm |
|
|
Slew Rate |
≥10V/us |
|
|
Damping factor |
>400, 8ohm |
|
|
Cross Talk |
>70dB |
|
|
S/N Ratio |
>112dBA |
|
|
THD+N |
< 0.58%,20-20K Hz,1W |
|
|
IMD |
< 0.1% 1kHz and 1dB below |
|
|
Automatic Protection |
Protections against short circuit protection, overload, overheat, radio-interference, on/off switching, mismatched load. |
|
|
Connection of Analog channel |
Analog channel:3-pin XLR(Including 2*3 audio link output),electronic balance input. |
|
|
Connection of Output |
Speakon Neutrik (4*nlt4) |
|
|
Mode Selection Switch |
The pull switch on the rear panel is used to select stereo mode, bridge mode, or parallel mode. |
|
|
Rated Voltage |
220V AC 50Hz |
|
|
Working Voltage |
190-250V AC |
|
|
Indicator light |
Independent LED indicator light for each channel; Voltage peak limiter(VPL); CPL;High frequency(VHF); High temperature; Failure; Mute |
|
|
Product Dimension(W*H*D) |
483*132*385mm |
|
|
Packing Dimension(W*H*D) |
550*505*192mm |
|
|
Net Weight |
22.2kg |
23kg |
