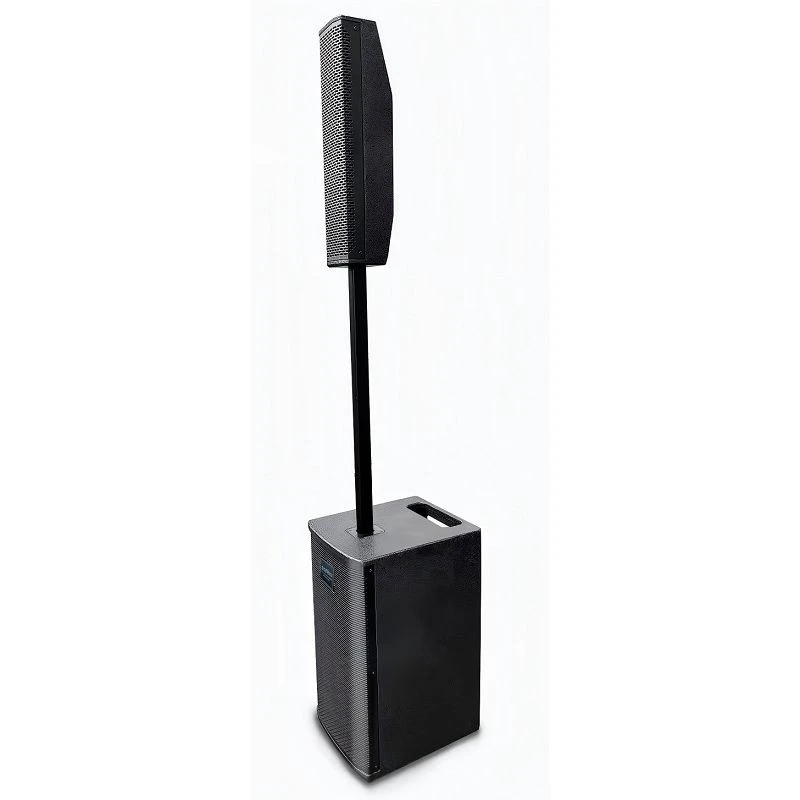

SD-36 SD-64 Active Powered Bluetooth Wireless Portable Line Array Column Speaker

1. Powerful and Stability:This Multi function portable sound system uses 1pcs subwoofer and 1pcs column array speaker, adopts class-D amplifier, with 1200 watts rated power and MAX 3600 Watts output, can bring you a thrilling effect as loud as you want; It can provide Coverage Horizontal 140°*Vertical 40°, Max SPL is 128dB, Frequency response is 40Hz-20kHz, and the powered pa speaker cabinet uses dual band pass technology and professional DSP module, which is with rich bass and crack highs, making it feels more vibrant and alive, perfect choice for DJs, musicians, and event hosts.
Send Inquiry
Description
SD-36 SD-64Features



  1. Powerful and Stability:This Multi function portable sound system uses 1pcs subwoofer and 1pcs column array speaker, adopts class-D amplifier, with 1200 watts rated power and MAX 3600 Watts output, can bring you a thrilling effect as loud as you want; It can provide Coverage Horizontal 140°*Vertical 40°, Max SPL is 128dB, Frequency response is 40Hz-20kHz, and the powered pa speaker cabinet uses dual band pass technology and professional DSP module, which is with rich bass and crack highs, making it feels more vibrant and alive, perfect choice for DJs, musicians, and event hosts.
  2. 4 Inputs and 1 output: This bluetooth party speakers have 4 inputs(2-way XLR Input; 1-way Stereo RCA Input ;1-way Bluetooth Input ), and it has 1-way XLR output, so you can connect microphones, electric guitars, mixers and other equipment directly, and supports Bluetooth and TWS functions to meet your all needs.Effortless feedback-free performances: With DSP module,support automatic feedback suppression, ensures your sound remains clear and uninterrupted, so you can focus on delivering your best performance without worrying about disruptive feedback.
  3. Hands-free convenience with Bluetooth: Convenient and fast digital audio transfer using a wireless Bluetooth 5.0 connection.Supports TWS pairing for true wireless stereo sound. Stream your favorite music wirelessly, allowing performers, DJs, and event hosts to manage playlists and audio sources effortlessly from a distance, enhancing mobility and flexibility at any venue.
  4. LINE IN/OUT: Use a TRS or XLR cable to connect the audio signal to the balanced Line Input. The signal enters the DSP all the way while the other one is directly Output to the balanced Line Output without DSP to loop out the signal. Countless speakers can be connected in series without causing signal distortion.
  5. Dual-layer heat sink: The new design of the amplifier module, the use of dual-layer heat sink, a complete solution to the reliability of the heat caused by the problem, not only the power is strong and stability has been greatly improved, even in the hot summer sunshine directly on the back of the amplifier will not lead to overheating protection.
  6. Easy to carry with one hand with ergonomic handle; sets up and tears down in seconds Column spacers and array cabinet conveniently fit into base unit



Technical parameters



Model

SD-36

SD-64

Frequency response range

45Hz-20KHz

40Hz-20KHz

Low frequency design

10-inch 2 way band pass

12-inch 2 way band pass

Mid-high frequency design

8*3.5-inch line source with phase plug

8*3.5-inch line source with phase plug

Maximum SPL

125dB

128dB

Coverage

H140° * V40°

H140° * V40°

Rated Power

1000W

1200W

Low frequency channel power

500W

600W

High frequency channel power

500W

600W

Divide the frequency

4 th/200Hz, DSP electronic frequency division

4 th/200Hz, DSP electronic frequency division

Connector

2-way XLR Input; 1-way Stereo RCA Input ;1-way Bluetooth Input ;1-way XLR Output

2-way XLR Input; 1-way Stereo RCA Input ;1-way Bluetooth Input ;1-way XLR Output

Material

Woofer: 15 mm Poplar plywood; Column speaker: 9mm birch plywood; Connecting rod: aluminium;Mesh cover: matte black spray paint

Woofer: 15 mm birch plywood; Column speaker: 9mm birch plywood; Connecting rod: aluminium;Mesh cover: matte black spray paint

Color

Black, matte lacquer

Black, matte lacquer

Dimensions(W*H*D)

Bass: 315*625*410

Column speaker: 103*800*180

Connecting rod: 35*800*50

Total system height: 2070

Bass: 365*625*450

Column speaker: 103*800*180

Connecting rod: 35*800*50

Total system height: 2080

Weight

N.W 20.5Kg; G.W 26Kg

N.W 25.5Kg; G.W 31Kg

Power consumption

100-240VAC,50-60Hz,1.5-0.6A

Column speaker W870xH175xD310mm

Subwoofer W440xH675xD515mm
