Features

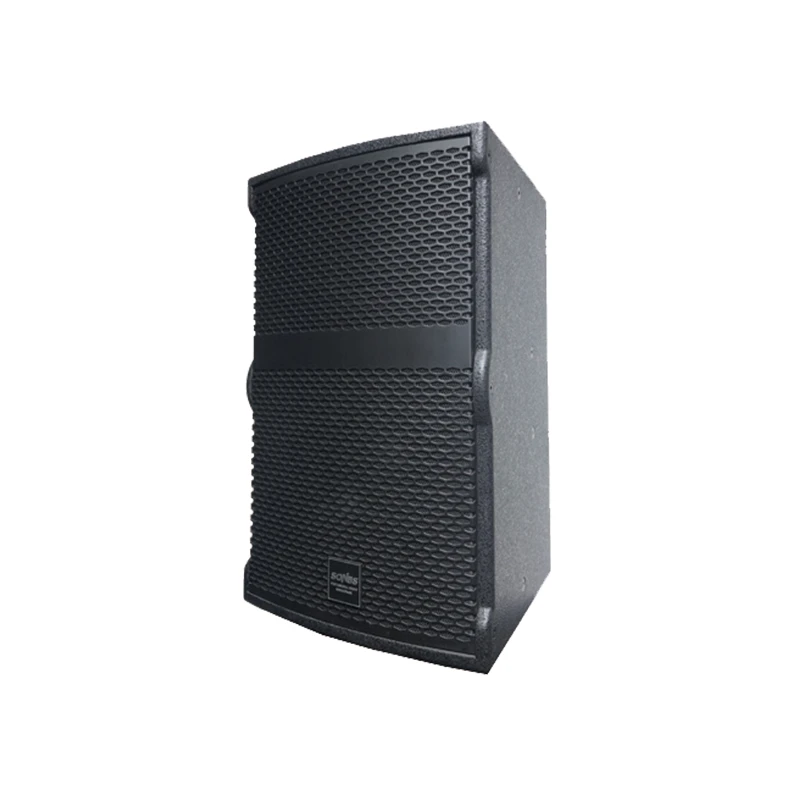

Timbre features: K series products are a two-frequency speaker with very wide directivity and extremely compact design. Its surging power and efficient power conversion performance can meet all kinds of professional sound reinforcement purposes, such as fixed installation, small and medium-sized sound reinforcement systems and as a supplementary sound system for mobile performances. Its compact cabinet design, It is especially suitable for use in various concealed works, such as boxes, hotel open corridors, mezzanines or ceilings, etc.
Technical parameters
|
Model |
SD-8K |
SD-10K |
SD-12K |
SD-15K |
|
Treble |
HF:1x1.5" |
HF:1x1.5" |
HF:1x1.5" |
HF:1x1.7" |
|
Bass |
LF:1x8" |
LF:1x10" |
LF:1x12" |
LF:1x15" |
|
Frequency response |
55Hz~20KHz(±3dB) |
50Hz~20KHz(±3dB) |
40Hz~20KHz(±3dB) |
30Hz~20KHz(±3dB) |
|
Rated power |
200W |
300W |
400W |
500W |
|
Peak power |
800W |
1200W |
1600W |
2000W |
|
Sensitivity |
97dB |
98dB |
98dB |
100dB |
|
Resistance |
8ohm |
8ohm |
8ohm |
8ohm |
|
Angle of radiation |
80ºHx50ºV |
80ºHx50ºV |
80ºHx50ºV |
80ºHx50ºV |
|
Dimension (H × W × D) |
426x270x270mm |
527x335x338mm |
600x365x400mm |
700x448x425mm |
|
Weight |
10KG |
13KG |
22KG |
33KG |
