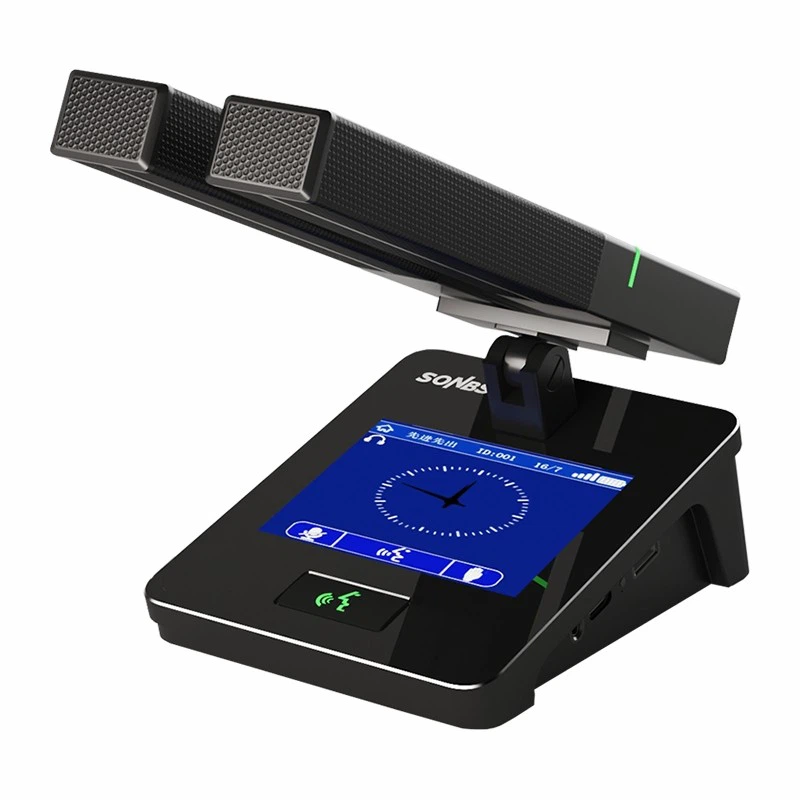

Wired Network Conference Microphone SC-6273C2 SC-6273D2

Single network port connection mode is adopted, which is convenient for standardized engineering wiring installation and later maintenance, 48K sampling rate, 60Hz-18KHz bandwidth, and perfect sound quality.
Send Inquiry
Description

Features



product-405-286

1.Single network port connection mode is adopted, which is convenient for standardized engineering wiring installation and later maintenance, 48K sampling rate, 60Hz-18KHz bandwidth, and perfect sound quality.
2.Low-key black design, with silicone physical buttons.
3.Adopts Dual-array MIC design, with speaking pickup function.
4.Support multi-touch capacitive buttons.
5.Support capacitive touch speech, which can effectively eliminate the key tapping sound and ensure a good venue environment.
6.Support PC software to control the microphone switch and support voice control function.
7.The chairman unit has the priority to turn off the representative unit's speech.
8.With TCP/IP protocol, supports ICMP, HTTP, UDP, TCP, IGMP and other protocols.
9.The unit supports PING packet function.
10.With speech timing and timed speech functions, countdown speech, etc. The representative machine has the function of applying for speech
11.With voice control function, the voice control sensitivity is adjustable.
12.With 5-band EQ adjustment function, different sound effects can be adjusted according to the speaker's voice characteristics.
13.Support sign-in function, and you can also prohibit unit sign-in, control unit sign-in and other functions through PC software.
14.1 USB port for charging mobile phones.
15.1 3.5 headphone jack design, two-in-one port for monitoring and MIC input, supports head-mounted microphone input function.
16.Digital ring network technology, realizes full digital signal transmission and processing, and resists RF interference from mobile phones and other similar devices.
17.The exquisite and stylish 4.0-inch touch screen is used to display the progress information of the meeting, which can display the following information: speaking mode, speaking time, speaker information, tea service, etc.
18.With camera and video switching, the camera can be automatically tracked after using computer preset.
19.The conference unit has a unique serial number, and the conference system can manually assign an ID to the conference unit.
20.The conference unit has the function of applying for tea service and voting.



Technical parameters



Microphone Type

Electret Condenser Microphones

Microphone Directivity

Unidirectional Cardioid

Frequency Response

60Hz~18KHz

Microphone Input Impedance

1KΩ

Sensitivity

-43±1dBv/Pa

Maximum SPL

120dB(THD>3%)

Signal-to-noise ratio

>80dB(A)

Crosstalk

>70d

Dynamic Range

>80dB

THD

<0.3%

Max Power Consumption

2W

Power supply method

From Conference controller

Colour

Black colour

Chassis Dimensions (LxWxH)

143L*110W*60.5H

Mounting Method

Desktop

Weight (LxWxH)

1kg

Microphone rod size

212*31*82mm
