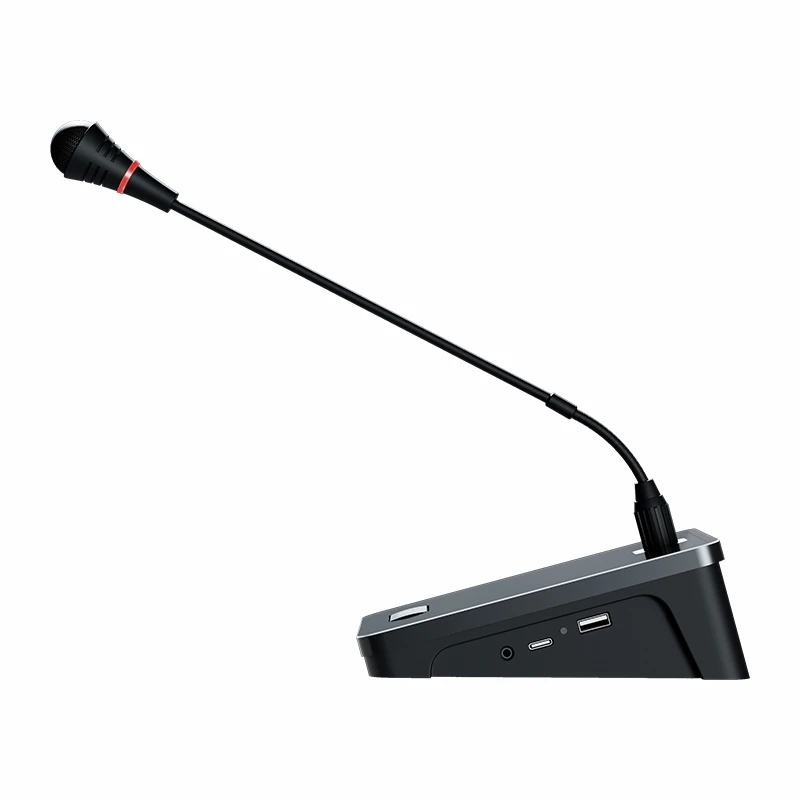

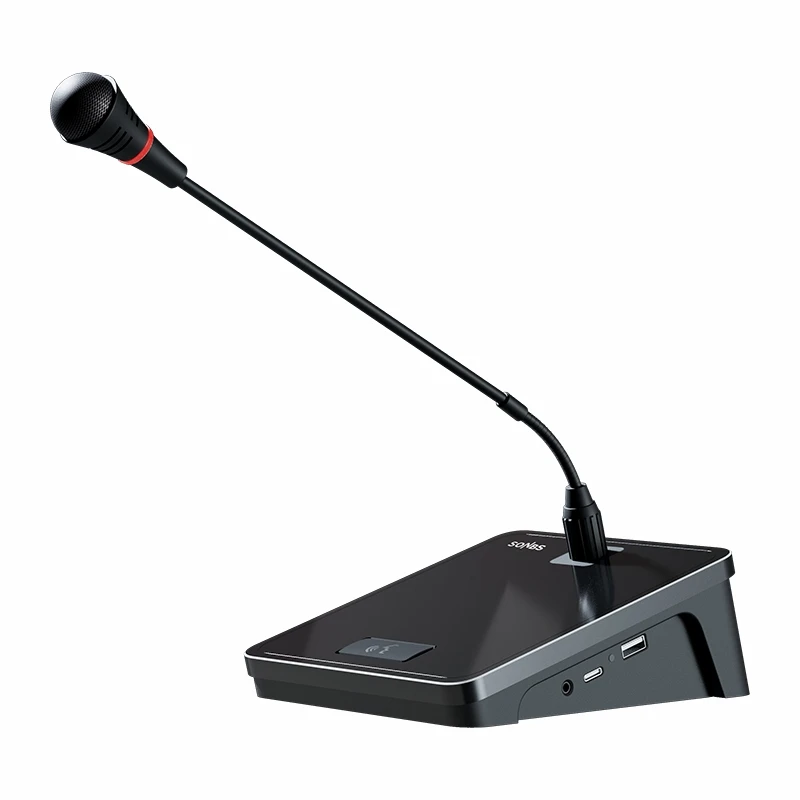

Wired Network Conference Microphone SC-6261C SC-6261D

Adopting single network port connection, convenient for standardised engineering wiring installation and post maintenance, 48K sampling rate, 60Hz-18KHz bandwidth perfect sound quality.
Send Inquiry
Description

Features

product-445-393



1.Adopting single network port connection, convenient for standardised engineering wiring installation and post maintenance, 48K sampling rate, 60Hz-18KHz bandwidth perfect sound quality.
2.Support PC software control microphone switch, support voice-activated function.
3.The chairman unit has the priority authority to close the delegate unit's speech. The delegate unit has the function of applying for speech.
4.With TCP/IP protocol, support ICMP, HTTP, UDP, TCP, IGMP and other protocols.
5.The unit supports PING packet function.
6.With speech timing and timer speech function, countdown speech, etc..
7.With voice-activated function, voice-activated adjustable sensitivity.
8.Support the sign-in function, can also be prohibited through the PC software unit sign-in, control unit sign-in and other functions.
9.A USB interface, can provide charging for mobile phones.
10.A 3.5 headphone interface design, two-in-one interface output monitoring and MIC input, support for headset microphone input function.
11.Original digital ring network technology, to achieve all-digital signal transmission and processing, anti-RF interference from mobile phones and other similar devices.
12.With the camera, video switcher, the use of computer presets, the camera can be automatically tracked.
13.Conference unit has a unique serial number, the conference system can manually assign ID to the conference unit.



Technical parameters



Microphone Type

Electret Condenser Microphones

Microphone Directivity

Unidirectional Cardioid

Frequency Response

60Hz~18KHz

Microphone Input Impedance

1KΩ

Sensitivity

-43±1dBv/Pa

Maximum SPL

120dB(THD>3%)

Signal-to-noise ratio

>80dB(A)

Crosstalk

>70dB

Dynamic Range

>80dB

THD

<0.3%

Max Power Consumption

2W

Power supply method

From Conference controller

Colour

Black colour

Chassis Dimensions (LxWxH)

143L*110W*60.5H

Mounting Method

Desktop

Weight (LxWxH)

1kg

Microphone Length

420mm
