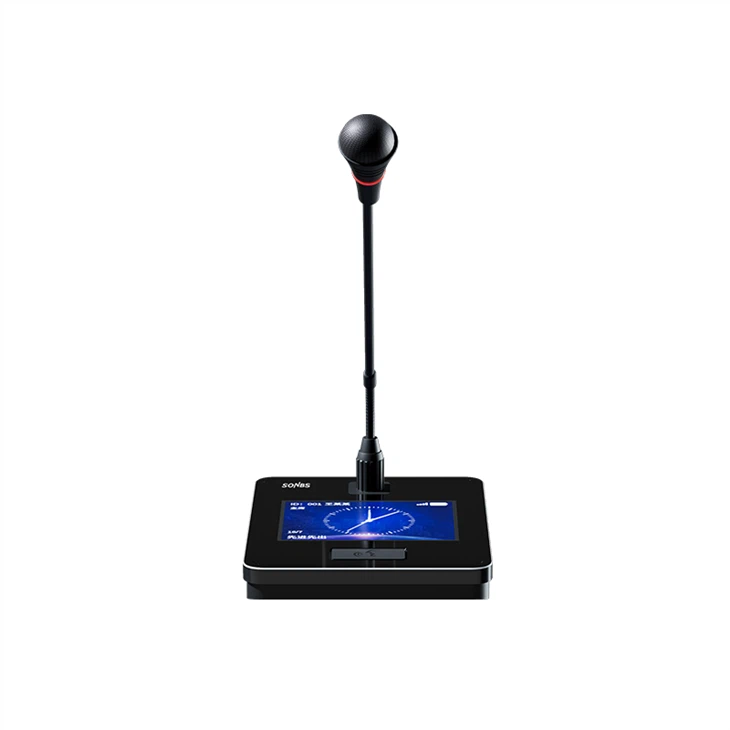

SC-6223C SC-6223D Wired Conference Microphone

SC-6223C SC-6223D Conference Discussion Unit
Description
Features:



  1. Adopting digital ring network technology, can resist RF interference from mobile phones and other similar devices, to achieve all-digital signal transmission and processing.
  2. It is curved patented appearance and low-profile black design,use capacitive touch keys.
  3. With 4-inch LCD display menu, support touch settings, can control the conference unit related functions.
  4. The chairman unit has priority rights, can be closed the delegate unit to speak,the delegate unit has the application to speak function.
  5. The chairman unit supports the check-in function, and also can control the delegate unit check-in through PC software.
  6. 48K sampling rate and 60Hz-18KHz bandwidth allows the microphone with perfect sound quality.
  7. It supports the control of EQ and microphone switch through PC software.
  8. It supports PING package function.
  9. With voice control function.
  10. With a USB interface, through this interface to provide charging mobile phones.
  11. There is a 3.5 headphone jack design, can be used for MIC input and output monitoring, combined into one interface; support for headset microphone or line input function
  12. It supports through the TYPE-C port upgrade programme.
  13. Adopting 6-core aviation connectors, easy to standardise the project wiring installation and later maintenance.



Technical parameters:



Power supply

DC24V (Host power supply)

Power consumption

2W

Sensor type

Capacitive diaphragm

Microphone core directivity

cardioid

Max SPL

120dB(THD>3%)

Signal-to-noise ratio

>80dB

Distortion

<0.3%

Frequency Response

60-18KHz

Sensitivity

-22dBv/Pa

Dimension (L*W*H)

140mm*110mm*45mm
