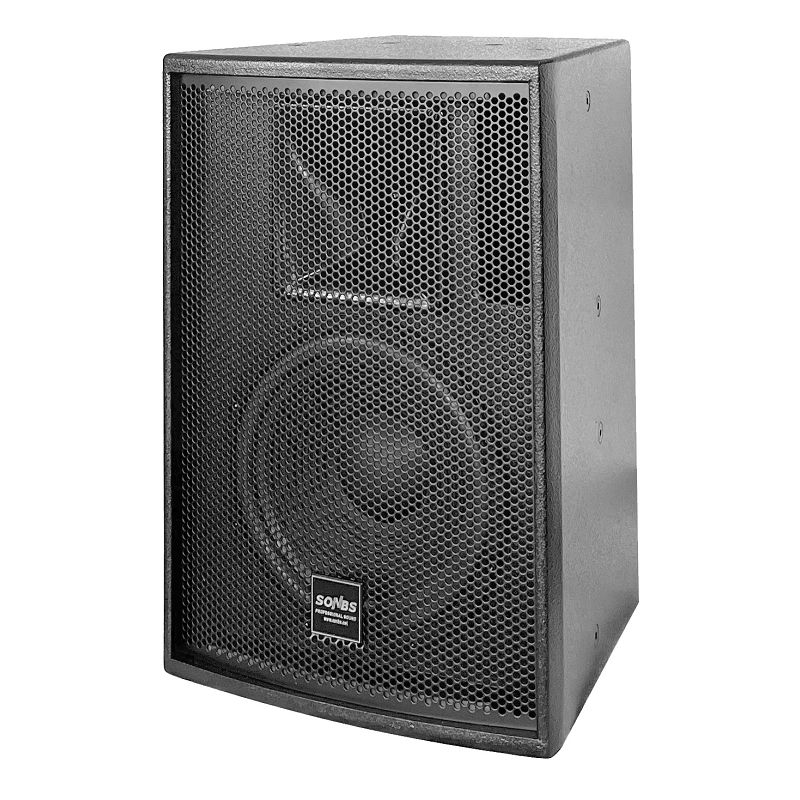

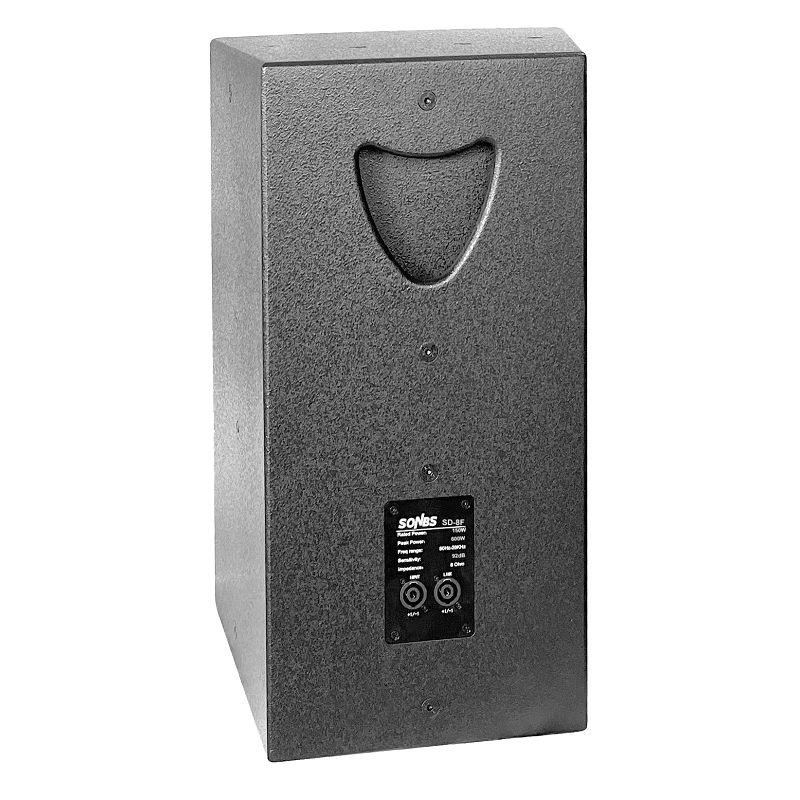

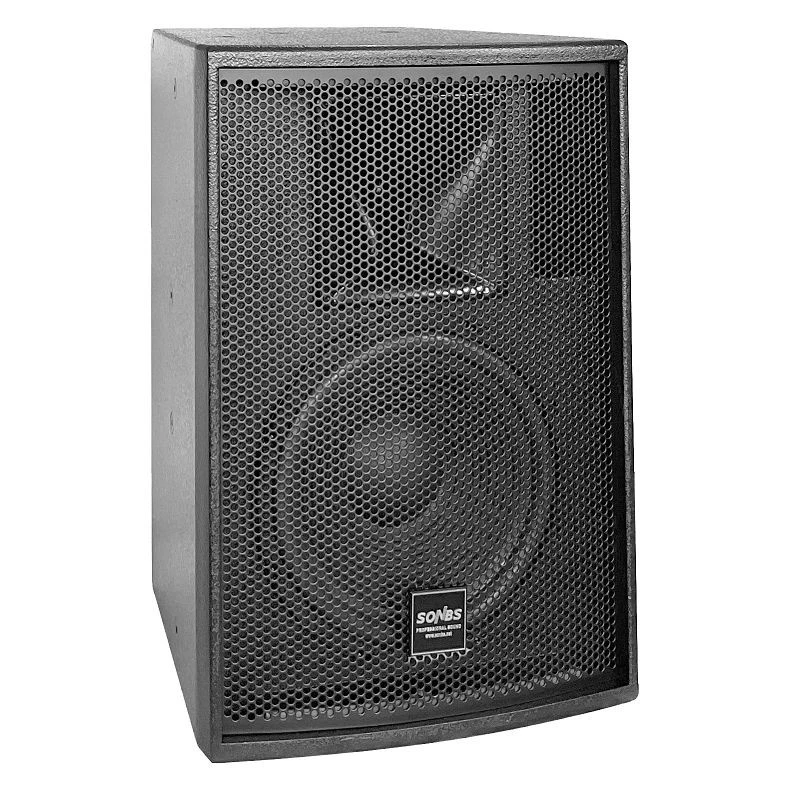

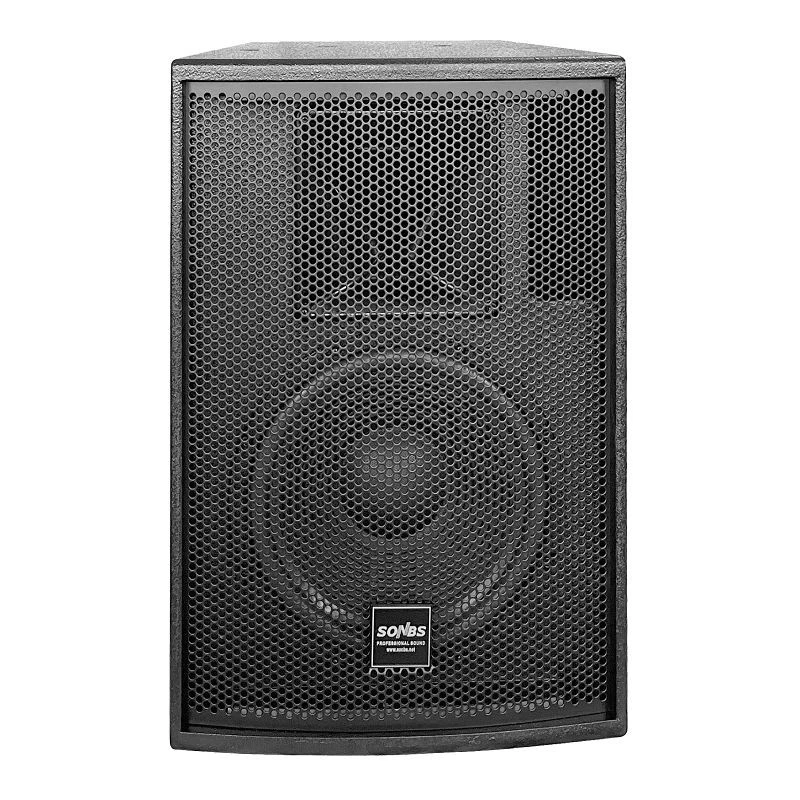

SD-8F SD-10F SD-12F SD-15F Two-Way Full-Range Speaker

The SONBS SD-8F series is a portable two-way speaker system designed for both main sound reinforcement and monitoring applications.These passive speakers are engineered to deliver the sensitivity, frequency response, and power handling required to perform in a variety of demanding audio environments, all while remaining affordably priced.
Description
Descriptions



The SONBS SD-8F series is a portable two-way speaker system designed for both main sound reinforcement and monitoring applications.These passive speakers are engineered to deliver the sensitivity, frequency response, and power handling required to perform in a variety of demanding audio environments, all while remaining affordably priced. Ideal for musicians, meeting rooms, halls, houses of worship, public address systems, or suspended in commercial settings like schools or nightclubs, the loudspeaker can be used with a powered mixer or paired with a full rack of amplifiers and signal processing. It provides the sound power and bandwidth necessary to deliver both loud music with natural clarity and quiet speech that is easily intelligible. The treble is crisp, the midrange is smooth, and the bass is deep and powerful. The high-frequency driver features a CMD (Constant Match Design) structure, optimizing dispersion and ensuring a seamless blend of high and low frequencies.



Technical parameters



Model

SD-8F

SD-10F

SD-12F

SD-15F

Treble

25-core titanium membrane tweeter

25-core titanium membrane tweeter

34-core titanium membrane tweeter

44-core titanium membrane tweeter

Bass

8-inch 35-core 156-magnet woofer

10-inch 35-core 156-magnet woofer

12-inch 65-core 156-magnet woofer

15-inch 65-core 156-magnet woofer

Frequency response

50Hz-20KHz

50Hz-20KHz

50Hz-20KHz

45Hz-20KHz

Rated power

150W

250W

350W

450W

Peak power

600W

800W

1400W

2000W

Sensitivity

92db

94db

96db

98db

Resistance

8ohm

8ohm

8ohm

8ohm

Angle of radiation

90 degrees (H) *60 degrees (V)

90 degrees (H) *60 degrees (V)

90 degrees (H) *60 degrees (V)

90 degrees (H) *60 degrees (V)

Dimensions (H*W*D)mm

264*254*450

344.3*319.4*494

384*364*573

468.5*442*691

Weight

8.2Kg

11Kg

16.4Kg

31.5Kg
