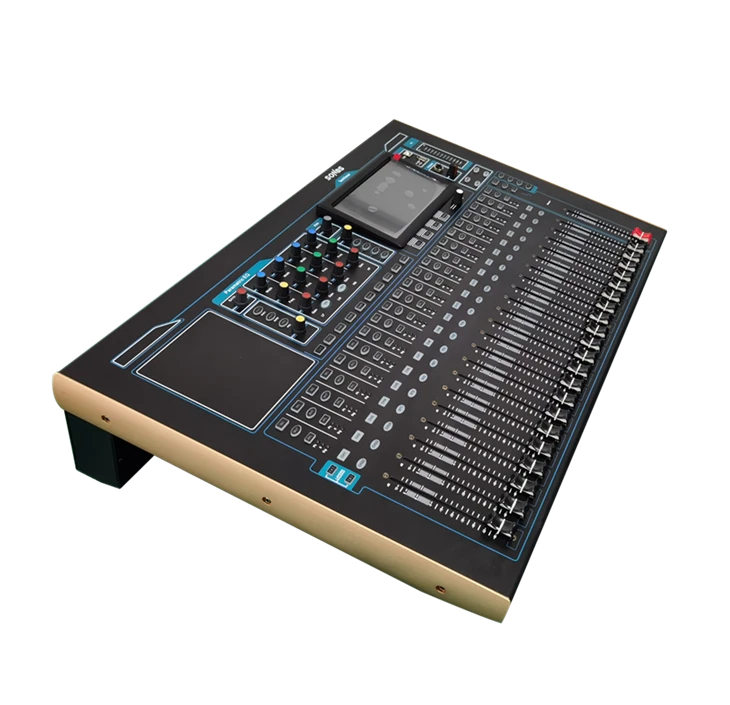

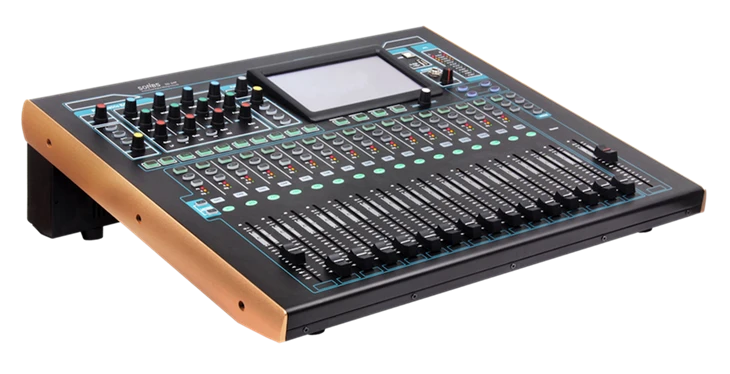

Features

Multi-Channel Input Flexibility

* 16-Channel: 12 MIC + 2 stereo inputs

* 24-Channel: 16 MIC + 2 stereo + MP3 + USB audio

* 32-Channel: 24 MIC + 2 stereo + MP3 + USB audio

Advanced Input Processing

* Input gain control with electronic adjustment

* Pre-amplification & high/low pass filtering

* 4-band parametric EQ per channel

* Dedicated compressor, delay & pan controls

* Independent 48V phantom power (per MIC channel)

* Digital MIC gain adjustment

Intelligent Channel Management

* Quick parameter copy between channels

* Multi-function menu per channel

* Individual mute & monitor buttons

* 100mm motorized faders with signal peak indicators (13 units total)

Premium Output Options

* 10-Channel Output: 1 stereo main + 2 SUB + 6 AUX

* 12-Channel Output: 1 stereo main + 2 SUB + 8 AUX

* SUB output selectable (pre/post fader)

Professional Output Processing

* High/low pass filtering

* 15-band parametric equalization

* Output compression & delay

* Phase adjustment controls

Studio-Grade Features

* Built-in 9-segment graphic equalizer

* Multi-track digital recording capability

* Dual-row 3-color 12-segment level meters

* USB audio interface (MP3/PC direct playback)

* Optical fiber input/output connections

Smart Control & Connectivity

* 7" HD touchscreen (32/24/16-channel models)

* 3.2" resistive touchscreen (8-channel model)

* Multi-OS software (iOS/Windows)

* Bilingual interface (Chinese/English)

* Wired network & optional wireless control

* FX pedal switch compatibility

Workflow Optimization

* 4 quick-scene recall modes

* 20 programmable scene memories

*PC-based parameter management

* User-definable control layers

* Parameter lock function

* Input/output EQ bypass switches

Professional Effects Suite

* Integrated multi-effect DSP processors

* Stereo return input channels

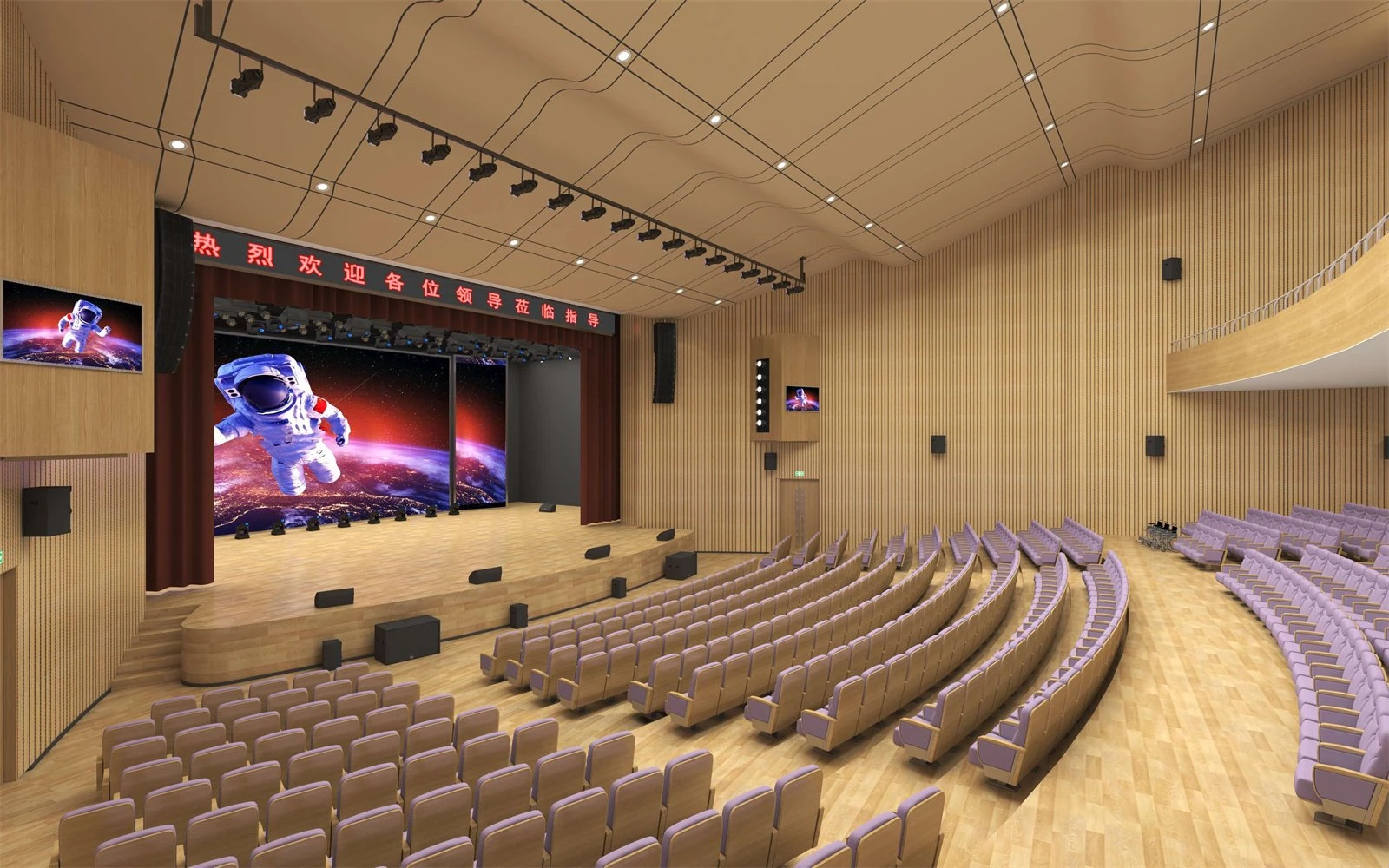

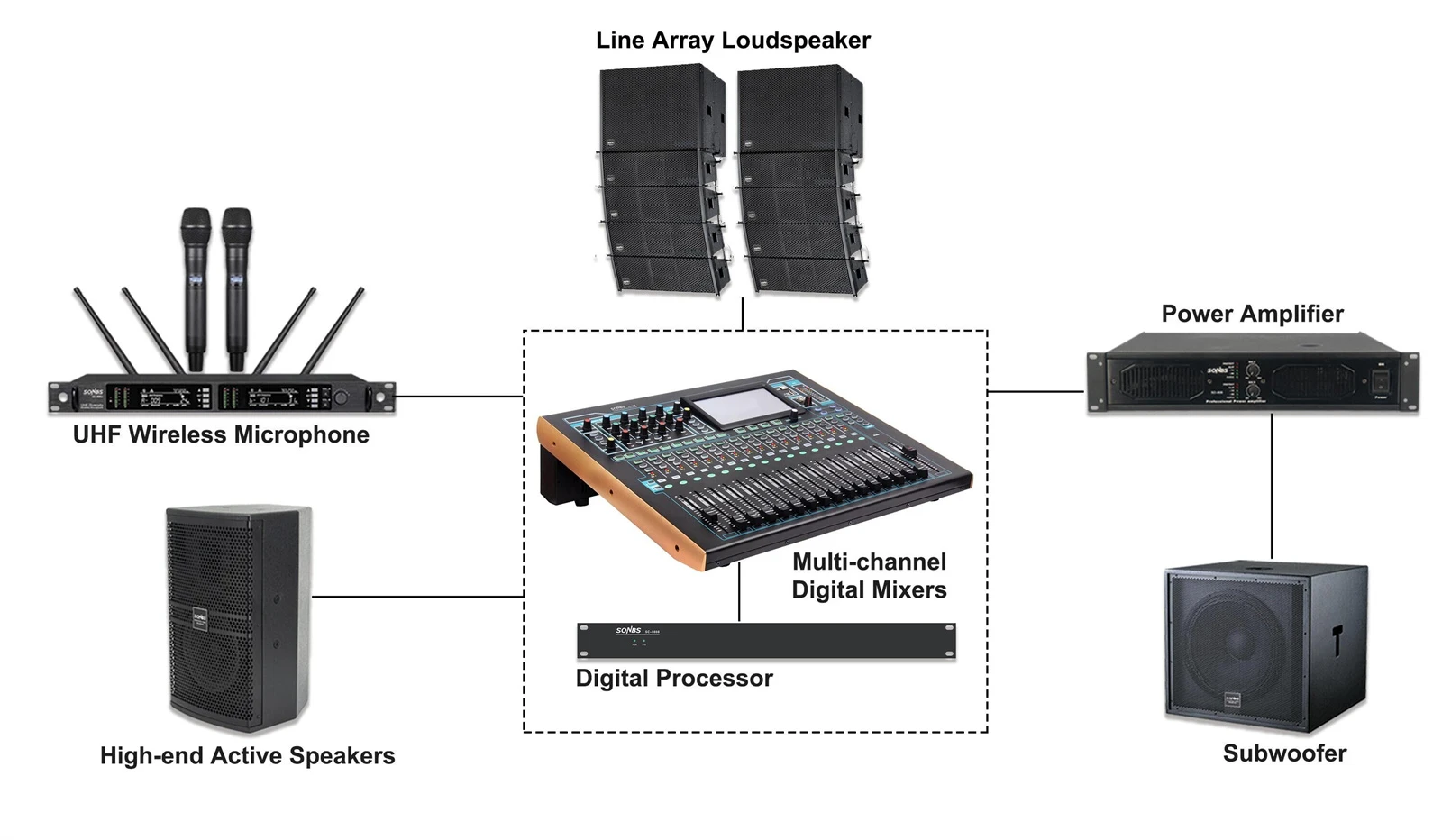

Ideal for live sound, recording studios, and installed audio systems requiring flexible routing, precise control, and professional audio processing in a scalable mixer platform.

Technical parameters

Input Mic/Line In	1-12 balanced/1-16 balanced/1-24 balanced, XLR socket
Input Sensitivity (XLR/TRS)	-60 to + 10db/-50 to + 20db
Electronic gain	-32 to + 10 db, 0.7 step
Maximum Input Level (XLR/TRS)	+19db/+29db
Input impedance (XLR/TRS)	>5kΩ / >10 kΩ
THD + N Uniform Gain State 0db	0.0005% -89db (20--20KHZ, direct output @ 0db 1KHZ)
THD + N Medium Gain + 30db	: 0.001-75db (20-20KHZ, direct output @ 0db 1KHZ)
Output voltage	4V MAX
Headphone output	7V 220 ohms
Four-section full-parameter equalization	20-20kHz, +/-12 Db, Q value 0.3 ~ 15.0
Band 1	Optional Lshelf, PEQ
Band 2	PEQ
Band 3	PEQ
Band 4	Choice of Hshelf, PEQ
Enter the independent delay	10ms Max
Output 15-segment full-parameter equalization	20-20kHz, +/-12 Db, Q value 0.3 ~ 15.0
Output independent delay	Max. 30ms
Compressor switch	Switch: ON/OFF
Threshold/ratio	-50dBu to 6dBu/1:1 to infinity
Impact/release	1ms -127ms / 1ms -127ms
9 segments can be inserted for graphic equalization	63,125,250,500,1k,2k,4k,8k,16k
Gain	Gain:+/-12dB
Control the fader	100mm electric
Network	The Fast Ethernet (100 Mb/s) port can be connected to a computer using a CAT5 cable for controlling console parameters via TCP/IP, or to a wireless router (access point) using V16 on an iPad Application for live mix control. The Link light flashes to indicate network activity.
Size(mm)	282365108/457436154/523436142/650455154
Weight	9kg/11kg/15kg/19kg
