Features

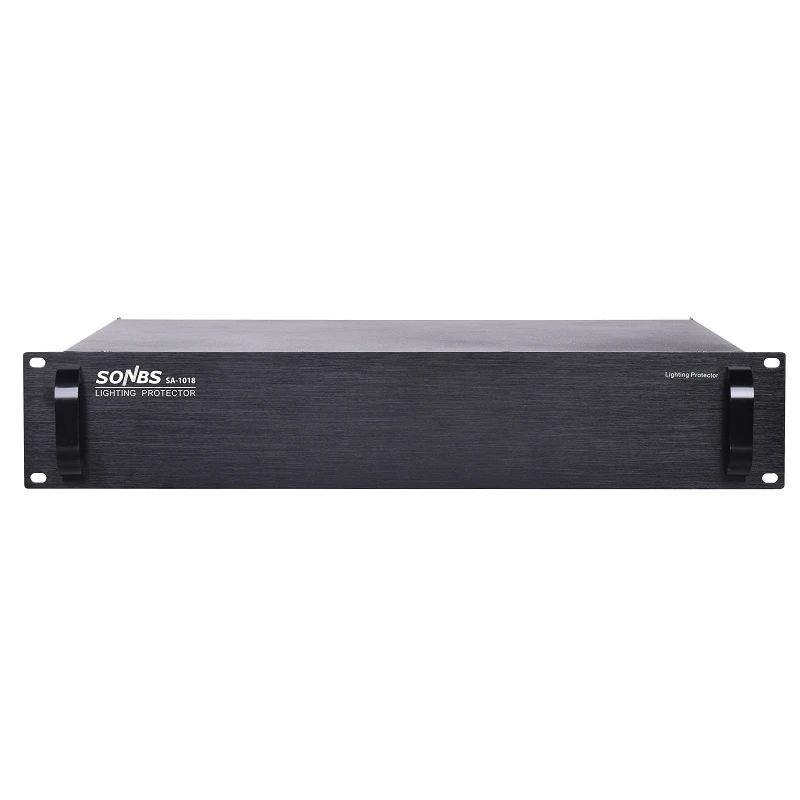

1.Standard cabinet design (2U), black aluminum oxide brushed panel, humanized handle,
exquisite craftsmanship, full of high-end temperament;

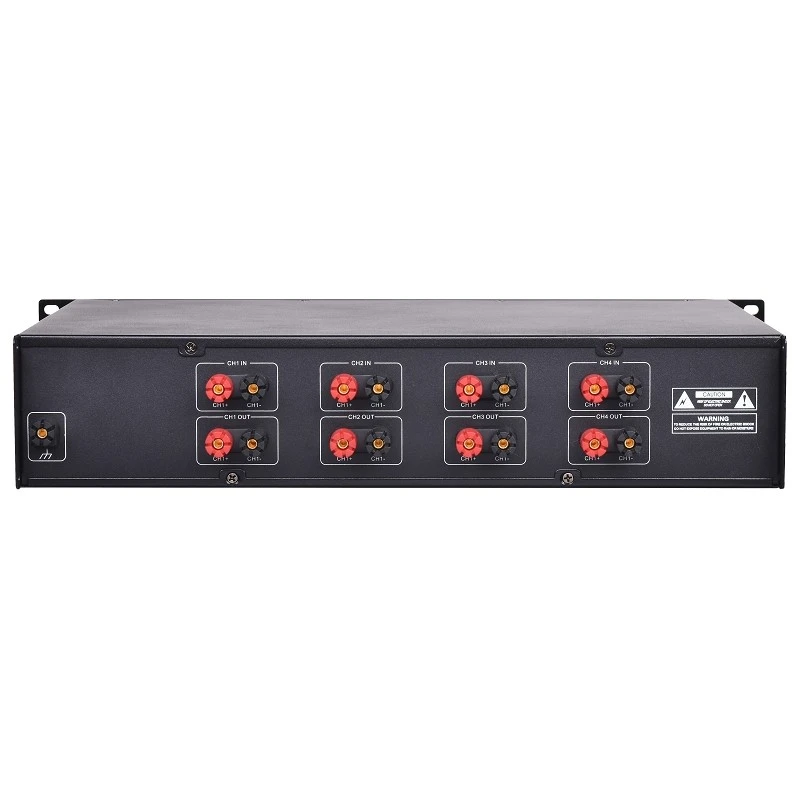

2.With four-way signal input (70V/100V audio model), four-way output (70V/100V audio
signal);
3.The machine can automatically monitor whether the output signal line is struck by
lightning, and automatically disconnect the output when a lightning strike is detected;
4.Channel switching capability: 70~100V/10A, audio signal;
5.The output of 1 group of grounding lines is connected to the ground, and the lightning
strike is automatically introduced into the ground.
Technical parameters
|
Model
|
SA-1018
|
|
Rated signal working voltage
|
AC110V
|
|
Maximum continuous working
current
|
10A
|
|
Discharge current
|
3KA
|
|
Maximum discharge current
|
6KA
|
|
Response time
|
<25ns
|
|
Input channel
|
4 inputs
|
|
Output channel
|
4 outputs
|
|
Dimensions(mm)
|
485(W)*88(H)*357(D)
|
|
Weight
|
5.5kg
|
