Features
* IP network terminal with audio decoder, built-in 2×15 Watt/8 Ohm Amplifier.
* Huge system capacity of 5,000 zones paging and multiple BGM system.
* IP based PA system over LAN/WAN or Internet by using existing network framework.
* One microphone input and one line input and one line output.
* Enable to broadcast Mp3 program or pre-recorded voice message from PC server to IP amplifier.
* Contact in and contact out can be programmed to play music or pre-recorded message to pre-set zones.
* Support DC24V input /SD Player and Bluetooth player
Specification
|
Model |
SA-8016 |
|
Description |
IP-Network Wall Mount Amplifier |
|
Rated Power Output |
2×15 Watt/8 Ohm |
|
Protocol Support |
TCP/IP, UDP, IGMP, ARP, UDP |
|
Transmit Speed |
10/100Mbps |
|
Audio Format |
16 digit stereo CD tone |
|
Frequency Response |
20Hz~16KHz |
|
THD |
≤0.3% |
|
S/N Ratio |
≥85dB |
|
Connector |
One RJ45 port, one mic input and one line input and one line output |
|
Speaker Output |
8 Ohm |
|
Working Temperature |
-5℃ to +40℃ |
|
Humidity |
10% ~ 90% |
|
Power Consumption |
60W |
|
Power Supply |
AC220V, 50-60Hz |
|
Dimensions |
156x156x35mm |
|
Weight |
0.8kg |

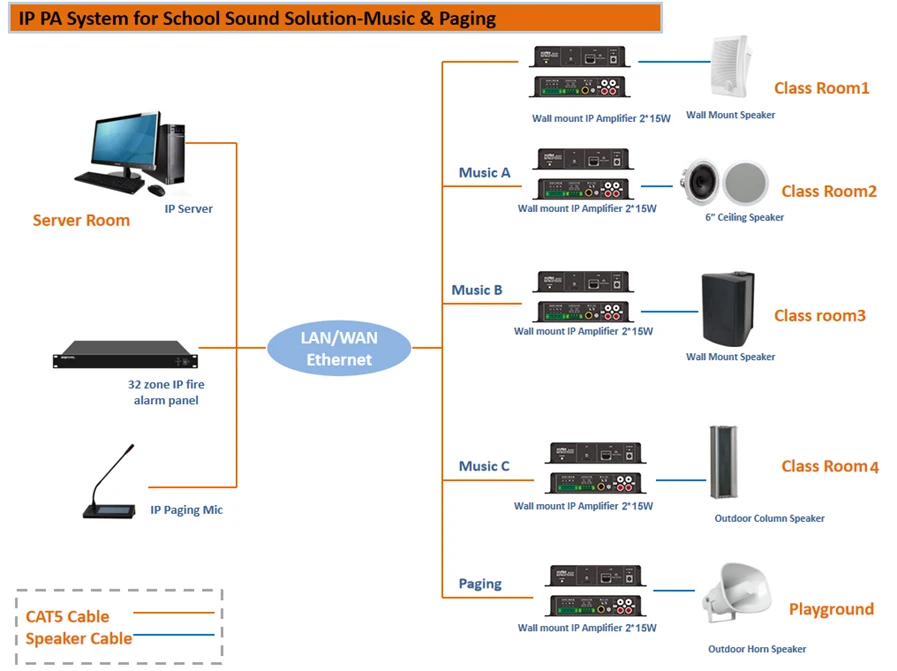

System connection diagram
