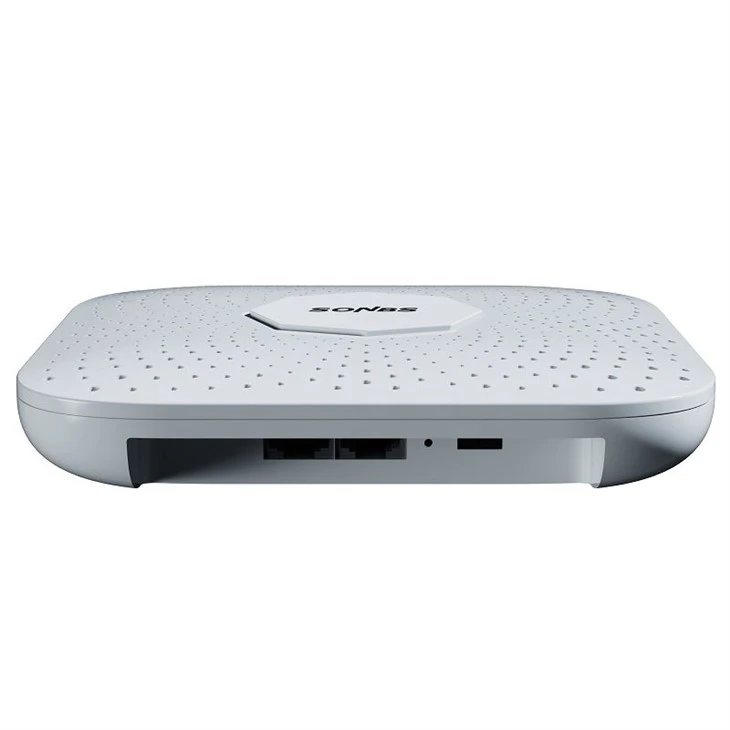

SC-6211 5G Wireless Digital AP Transmitter

5G Wireless Digital AP Transmitter SC-6211
Description
Features:



  1. The product is easy to install and is suitable for ceiling, wall mounting, or placing on a desktop.
  2. The uplink features a Gigabit Ethernet port, ensuring that the wired connection is no longer a bottleneck for wireless access.
  3. Supports both PoE (Power over Ethernet) remote power supply and local power supply. Users can choose the appropriate power source depending on their installation environment.
  4. Supports 802.11a/b/g/n and 802.11a/n/ac protocols, high-power 1200M 4T4R MIMO technology, with a maximum connection capacity of 128 devices. It also supports MU-MIMO, enabling the AP to communicate with multiple devices simultaneously. The maximum transmission rate can reach up to 1.601 Gbps, effectively providing high-performance wireless access in terms of access density, coverage, and throughput.
  5. Supports 1024QAM modulation and demodulation algorithms as well as spatial multiplexing technology, offering greater wireless coverage and faster internet speeds, suitable for carrying voice, text, and other wireless services.
  6. Supports the WPA3 security protocol, enhancing the confidentiality of conference content.
  7. Supports both Chinese and mixed Chinese-English SSIDs, allowing for better recognition and personalized SSID creation.
  8. Supports 80/160 MHz high-bandwidth channels, helping to reduce network congestion, decrease latency, and deliver higher performance.



Technical Parameters:



Status Indicator

1*System Light: Blue, Normal on-line: Normally on, Not activated: Blinking, Abnormal equipment power-up: System Light off

Ethernet port

2 * 10/100/1000Mbps Adaptive Wired LAN/WAN Ports

POE port

1*RJ45 port, Supports 802.3at/bt Power over Ethernet standard

Antenna

Built-in matrix smart antenna

Transmit power

≤ 20dBm

Adjustable power granularity

1dBm

Adjustable power range

1dBm~corresponding national regulations

Reset/restore factory settings

1 reset button, long press to restore default configuration

Adjustable power range

1-23dB

Protection grade

IP41

Power consumption

35W

Working/Storage Temperature

0℃~45

Working/storage humidity

10%~90%RH

Dimensions (mm)

190L*190W*50H

Weight

0.45KG
